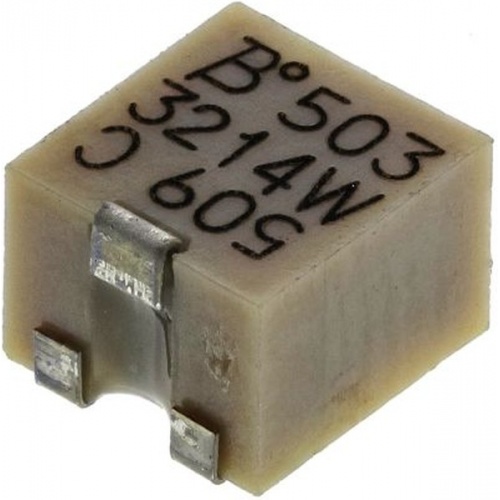

3214W-1-503E

TRIMMER, SMD, 5 TURN 50K; Power Rating: 250mW; Resistance, Track: 50kohm; Tolerance, Resistance: + 10%; Series: 3214W; Temperature, Operating Range: -65°C to +150°C; Resistor Element Type: Variable Rotary Cermet; Voltage, Rating: 300V dc; Temperature Coefficient: + 100ppm/°C; Adjustment Type: Top; Termination Type: SMD; Case Style: SMD; Depth, External: 3.9mm; Length / Height, External: 5.1mm; Quantity, Reel: 250; Resistance: 50kohm; Resistance, Contact Variation +: 3%; Resistance, End: 500ohm; Temp, Coeff, +: 100ppm/°C; Temp, Coeff, -: 100ppm/°C; Temp, Op. Max: 150°C; Temp, Op. Min: -65°C; Terminal Type: Surface Mount (SMD, SMT); Tolerance, +: 10%; Tolerance, -: 10%; Track Taper: Linear; Turns, No. of: 5; Voltage Rating, DC: 300V; Voltage, Proof: 600V; Width, External: 4.8mm; Width, Tape: 16mm
Номинальное сопротивление 50 кОм, Тип монтажа SMD, Число оборотов регулировки 5, Тип резистора Trimmer
