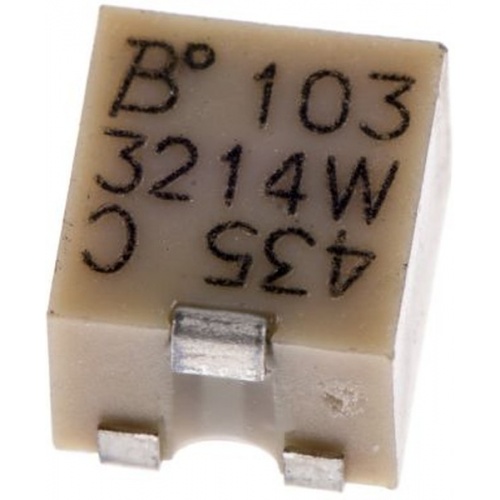

3214W-1-103E

The Trimpot 3214 series from Bourns are cermet, surface mount trimming potentiometers. These potentiometers are multiturn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.

• 4mm square potentiometer meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint
• Side or top adjustment with lead screw
• Sealed to withstand board wash processing
• 5 turns and rotational life of 200 cycles
• Resistance value ranges from 10 ohm to 2Mohm
• Tolerance of ±10%
• Temperature coefficient is ±100ppm/°C
• Operating temperature ranges from -65°C to +150°C
• Power rating is 0.25W
• Pick and place centring design with flush adjustment
