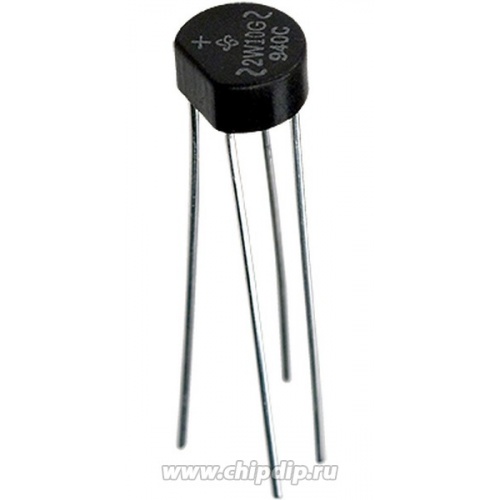

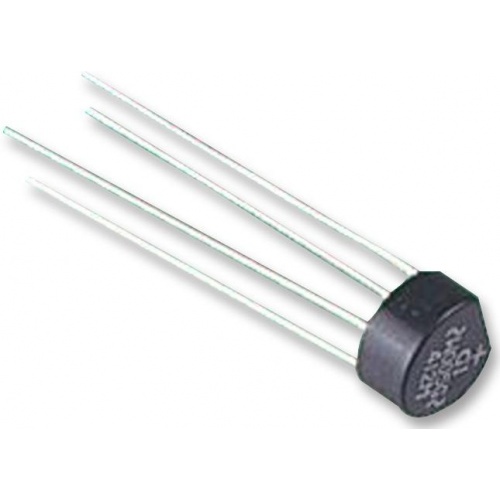

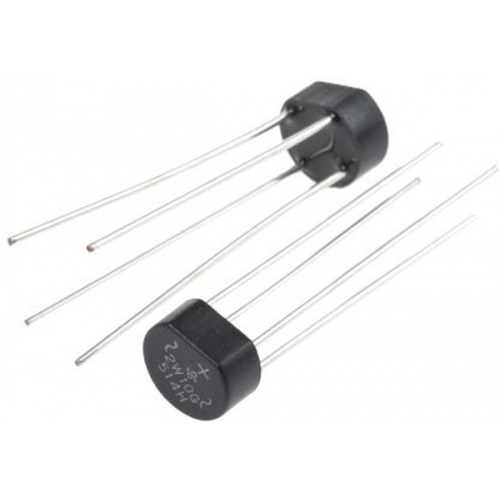

2W10G-E4/51

The 2W10G-E4/51 is a 4-pin single-phase glass passivated Bridge Rectifier Diode with high surge current capability. It has general purpose use in AC/DC bridge full wave rectification for adapter, charger and home appliances applications.

• UL94V-0 Flammability rating
• Ideal for printed circuit board
• <0.5µA Typical IR
• High case dielectric strength
• Solder dip 260°C at 40s
• 70V Maximum RMS voltage
• -55 to 150°C Operating junction temperature range
