0472720001

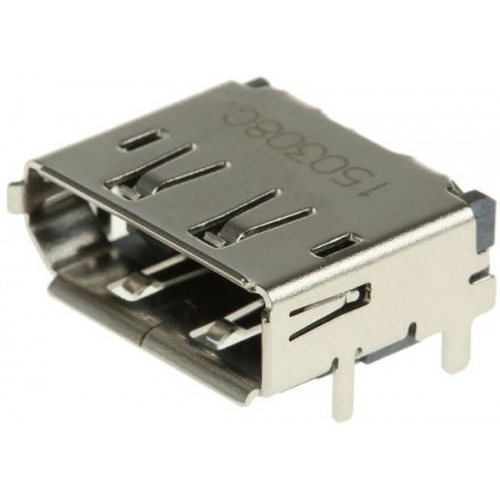

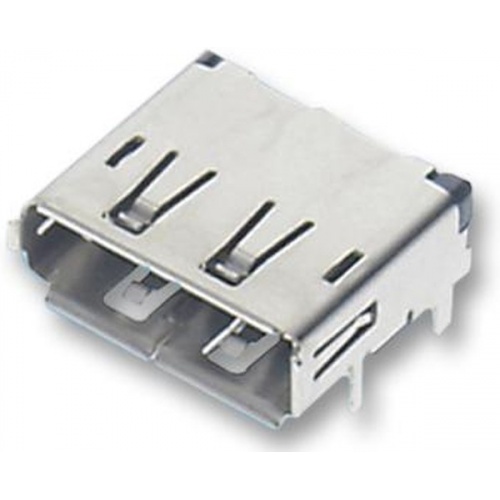

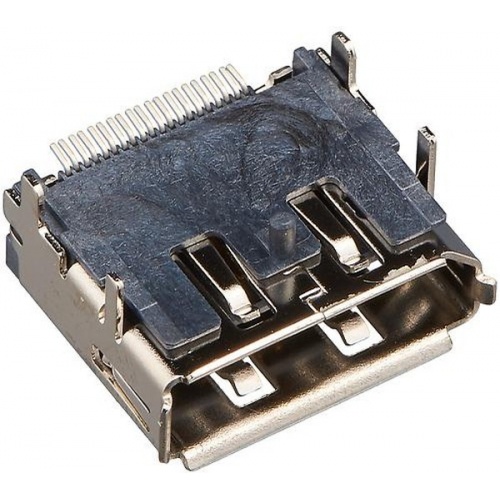

RECEPTACLE, PCB DISPLAY PORT; Connector Type: Wire-to-Board; Gender: Receptacle; Ways, No. of: 20; Pitch, Lead: 0.5mm; Termination Method: Solder; Material, Contact: Copper Alloy; Series: 47272; Plating, Contact: Gold; Rows, No. of: 2; Flammability Rating: UL94V-0; Material, Insulator: High Temp. Glass Filled Thermal Plastic; Mating Cycles, No. of: 10000; Pitch: 0.5mm; Resistance, Contact: 30mohm; Resistance, Insulation: 10Mohm; Temp, Op. Max: +85°C; Temp, Op. Min: -20°C; Voltage Rating, AC: 40V; Voltage, Withstand: 500V; Current, Max: 0.5A; Force, De-mating: 9.8N; Force, Mating: 44.1N; Mounting Type: PCB; Mounting, Orientation: Horizontal; Resistance, Contact Max: 50mohm
